제품 상세 정보:
|상품 이름:||만팩 핵무기 전파 교란기||출력 전원:||각각 밴드 50w|
|Shield Radius:||50-300 meters @depends on signal strength||배터리:||내장 배터리 27V56Ah|
|배터리 작업 시간:||50 분으로 일하기를 계속하세요||중량:||60KGS|
300m Range Convoy Bomb Jammer,
500w Convoy Bomb Jammer,
500w Programmable Jammer

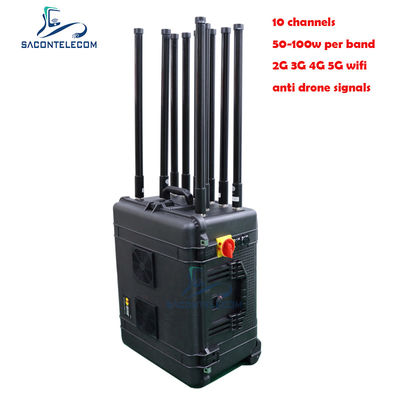

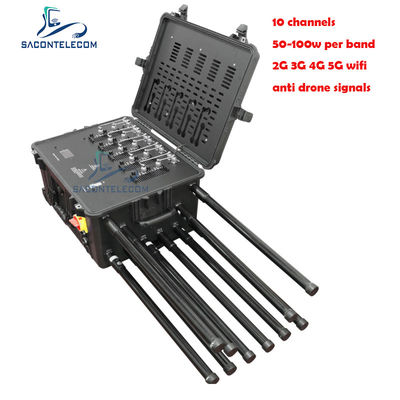

10 Antennas 300m Range Convoy Bomb Jammer High Power 500w Draw Bar Box
10 Antennas Draw Bar Box 500w High Power 300m Range Convoy Bomb Jammer factory Manufacturer
Descriptions of IED Bomb Jammer:
The vehicle bomb jammer is professional Pelican 1620 Case, portable High power mobile phone jammer for 5G 3G 4GLTE/WIMAX cellular phones, for LOJACK LORA GPS Wi-Fi UHF VHF Signal Jammer which are currently presented on the market. Also is High power UAV Drone Jammer model with 10 antennas 17 cooling fan which bring us a strong jamming ability. Build-in battery can work 60 minutes. Frequencies can be customized as your demand. VCO or DDS system is optional.
This manpack powerful bomb jammer is total 500w, each band 50w. Jamming radius is up to 300m distance. It is usually used by military, goverment, policeman and other safety place.
Advantage of UAV drone signal jammer:
1. Output power total 500w, You can choose high gain 5-10 dbi OMNI or Panel directional antennas, shielding 50-300m, or drone 1500m,Still depends on the strength signal in given area;
2. Each unit can jam up to 10 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)
3. 100% safe VSWR over protection (isolator) for each modular;
4. Big aluminum alloy shell and 17 pieces cooling fans, not-stop to work;
5. With Pelican case 1620 ,carry out;
6. Build-in Battery 27V56Ah continue working 50 minutes, Battery Power and charger stative display via LED screen;
7. Selection of antennas to provide more flexibility regarding jamming coverage.
OEM Customized Service
Frequency Range can be customized: LOJACK LORA UHF VHF and more
Silkscreen OEM service can be offered.
Specifications of vehicle convoy vip bomb jammer:
|Key specifications: SA-MBJ10|
|Channel||Output Port||Frequency range||Average out-putting power|
|1||CDMA||850-894MHz||47dbm / 50W|
|2||PCS||1920-1990MHz||47dbm / 50W|
|3||3G||2110-2180MHz||47dbm / 50W|
|4||4GLTE LOW||758-803MHz||47dbm / 50W|
|5||4GLTE HIGH||2570-2690MHz||47dbm / 50W|
|6||5G3500||3400-3600MHz||47dbm / 50W|
|7||GPSL1||1570-1610MHz||47dbm / 50W|
|8||GPSL2L5||1170-1280MHz||47dbm / 50W|
|9||VHF/LOJACK||135-174MHz||47dbm / 50W|
|10||UHF/RC433||400-470MHz||47dbm / 50W|
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)
Build-in Battery 27V56Ah continue working 50 minutes
|Dimension: (length,width, height ) Pelican case 1620:630*500*350mm(not Include Antenna)|
|Package Size: 800 x700 x 600m mm
G.W:60kg Working temperature: -20~50℃
Shielding radius: (50--300) meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
|Warranty: one year from delivery date|
Omni antenna: Length:50cm
N.W:0.5Kg Gains:5-10dbi VSWR>1.5 H:360º V:20 º
FAQ of sacontelecom portable bomb jammer:
1) Are you a factory or a trade?
We are a lead factory of mobile signal jammers in China.
2) What's your MOQ? Is sample available?
Yes. Sample is available with charge.
3) What's shipping method?
DHL, UPS, Fedex, TNT, EMS, Aramex and etc.
4) Payment term
TT via Bank, Western Union, Alibaba method, Paypal.
12 months after shipment date.
6) Delivery time
Always 30 working days after receive payment.
7) How long can I get it?
8-12 days after shipment.
Application of IED RCIED Jammer:
protection of VIP’s and groups, military security forces, SWAT team, bomb squad, anti-terrorist units, anti-drug units, anti-riot force, the EOD team, checkpoints, hostage negotiations, border control, etc.
Package Lists of outdoor drone jammer:
1pcs backpack signal jammer
1pcs AC Charger
1pcs aviation packing box
