| Product name: | handheld jammer | Output power: | 70 watts |
|---|---|---|---|
| Jam Radius: | 2-60meters Still depends on the strength signal in given area | Power Supply: | AC110-240V to DC28V |
| Product Size: | 210x133x85mm (without antenna) | Weight: | appr.3.0kg |

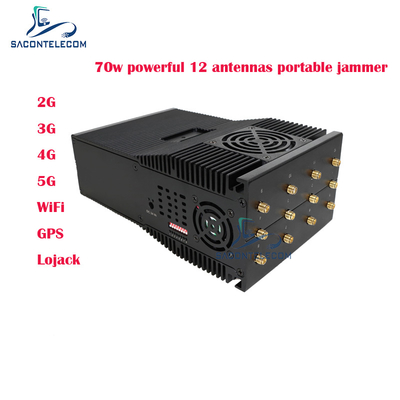

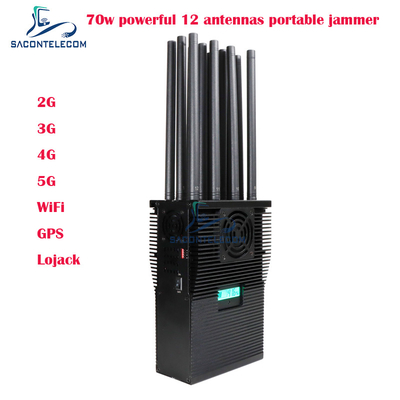

12 Antennas 70w Portable Mobile Phone Signal Jammer 2G 3G 4G 5G WiFi Lojack GPS USA Type
Descriptions:
New high power 70 watts 12 Antennas handheld design mobile phone signal Jammer SA-PJ12-Npro, jamming up to 60 meters for all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G 5G, and CDMA 450Mhz, Block GPS, Wi-Fi 2.4G 5G, Walkie-Talkie UHF/VHF and LORA,LOJACK etc. Battery capacity LCD display (Capacity percentage, working Voltage/Current) is popular in the market. Good cooling system with heat sink and 4 big fan inside, be charged in car and AC power supply.
Features:
1. New powerful 12 bands portable jammer with 12 antennas design, blocking all cell phone 5G 4G 3G 2G LORA LOJACK GPS Wi-Fi RF signals;
2. 70 watts high output power, Jamming range 2 to 60 meters (at-75dBm, depends on signal strength in given area);
3. Good cooling system with 4 cooling fans inside and bigger hot sink;
4. With DIP switch, can turn on/off any signal band without affect other bands;
5. Power supply: AC100-240V or Additional Car Charger DC12V to Dc28V;
6. With built-in battery, can work 60 minutes, repeated charging faster;
7. Battery capacity LCD display (Capacity percentage, working Voltage/Current);
8. Safe case packing and handheld for optional.
Specifications:
| Key technical specifications: SA-PJ12-Npro-US | |||
| Channel | Output port | Frequency range | Average out-putting power ±1dbm |
| CH 1 | VHF/LOJACK | 135-175MHz | 5W |
| CH 2 | 5G3.5G/3.7G | 3400-3800MHz | 5W |
| CH 3 | WIFI5.8G/5.2G | 5125-5850MHz | 2W |
| CH 4 | 4GLTE Low | 698-803MHz | 8W |
| CH 5 | 5G600 or 5G1500 | 617-698MHz | 8W |
| CH 6 | GPSL2L3L4L5 | 1170-1390MHz | 5W |
| CH 7 | GPSL1 | 1560-1610MHz | 5W |
| CH 8 | 4GLTE High | 2496-2690MHz | 6W |
| CH 9 | CDMA/GSM&LORA | 850-960MHz | 8W |
| CH 10 | DCS/PCS | 1805-2000MHz | 6W |
| CH 11 | 3G | 2110-2180MHz | 6W |
| CH 12 | WIFI2.4G/4G2300 | 2300-2485MHz | 6W |
|
Power supply: adapter 50 to 60Hz AC (110-240V AC/28V DC) Additional Car Charger DC12V to Dc28V Built-in battery:25.2V/5200mAh, Continue working: Around 60 minutes |
|||
|
Dimensions: (length, width, height) 210x133x85mm (without antenna) Net weight: 2.5kg Gross weight: 3.0kg Length of antenna :192mm Gain:2.5dbi |
|||
| Neutral packing size: 300*270*130mm Gross weight: 4.0kg | |||
| Safe case packing size: 340*330*140mm Gross weight: 6.0kg | |||
| Total power: 70W Shielding radius: (10-60) meters at, Still depends on the strength signal in given area |
|||
Packing Lists:
1pcs portable jammer host
12pcs omni antennas
1pcs AC charger
Additional Car Charger DC12V to Dc28V
Additional Carry Case Size 340 x 330x 140mm, 2.0kg
